Secondary Cell Battery

Cutting-edge and bus-bar welding/appearance inspection for secondary batteries.

Secondary Cell Battery Plate Inspection System

System that inspects Cutting condition and divides the defects such as Burr, Dross, etc. and analyze the cause of defect during producing battery plates

Key Features

Applicable to Secondary Cell Battery plate
Process time : 420ms / frame
6000 x 256 Camera Resolution (Resolution : 10um)
Inspection Item — Burr : 50um / Dross : 50um

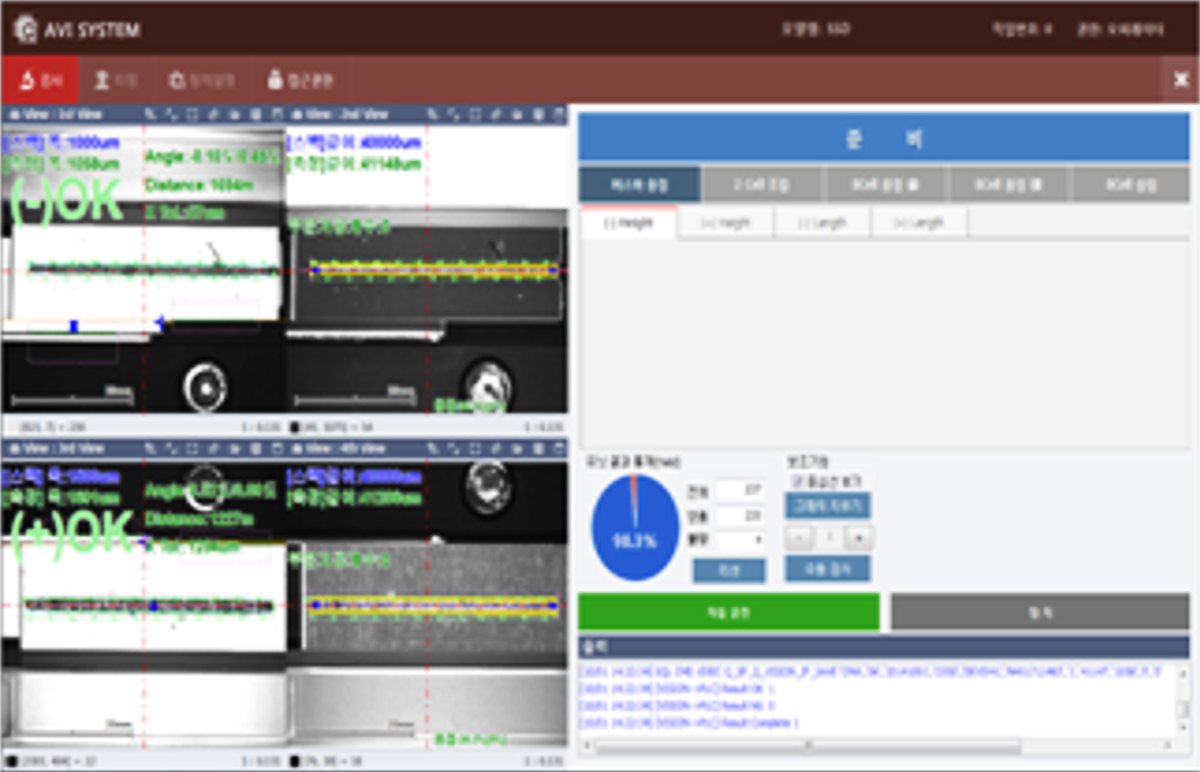

Secondary Cell Battery Bus Bar Inspection System

System that inspects the welding and external appearance condition of bus bar, inspects its insertion condition and divide Good / NG with analyzing its cause during producing battery module

Key Features

Applicable to Secondary Cell Battery Bus Bar
Process time — Image grab : 80ms / Image analysis : 160ms
2448 x 2048 Camera Resolution (Resolution : 20um)
Inspection Item : Welding width, Lead width, Cell Insertion
