Auto Loader / Unloader

Automatic substrate and jig loading and unloading for flip-chip bonding and SMT processes.

FCBGA Precision Auto Loading System

At Flip Chip Bonding Process, System that load Substrate or Assembled Bottom JIG / Substrate / Top JIG to Bonder

Key Features

Applicable to 74, 95mm Substrate by auto conversion & conversion kit
Customized by Single or Dual Lane
Substrate Quality Check by QC Vision with Automatic Map Function
Applicable to OHT for Material Handling System

System Configuration: BTM JIG Magazine Loader/Unloader, Transfer/Working Rail, Substrate Bundle, Top JIG Bundle, PnP, Alignment Vision

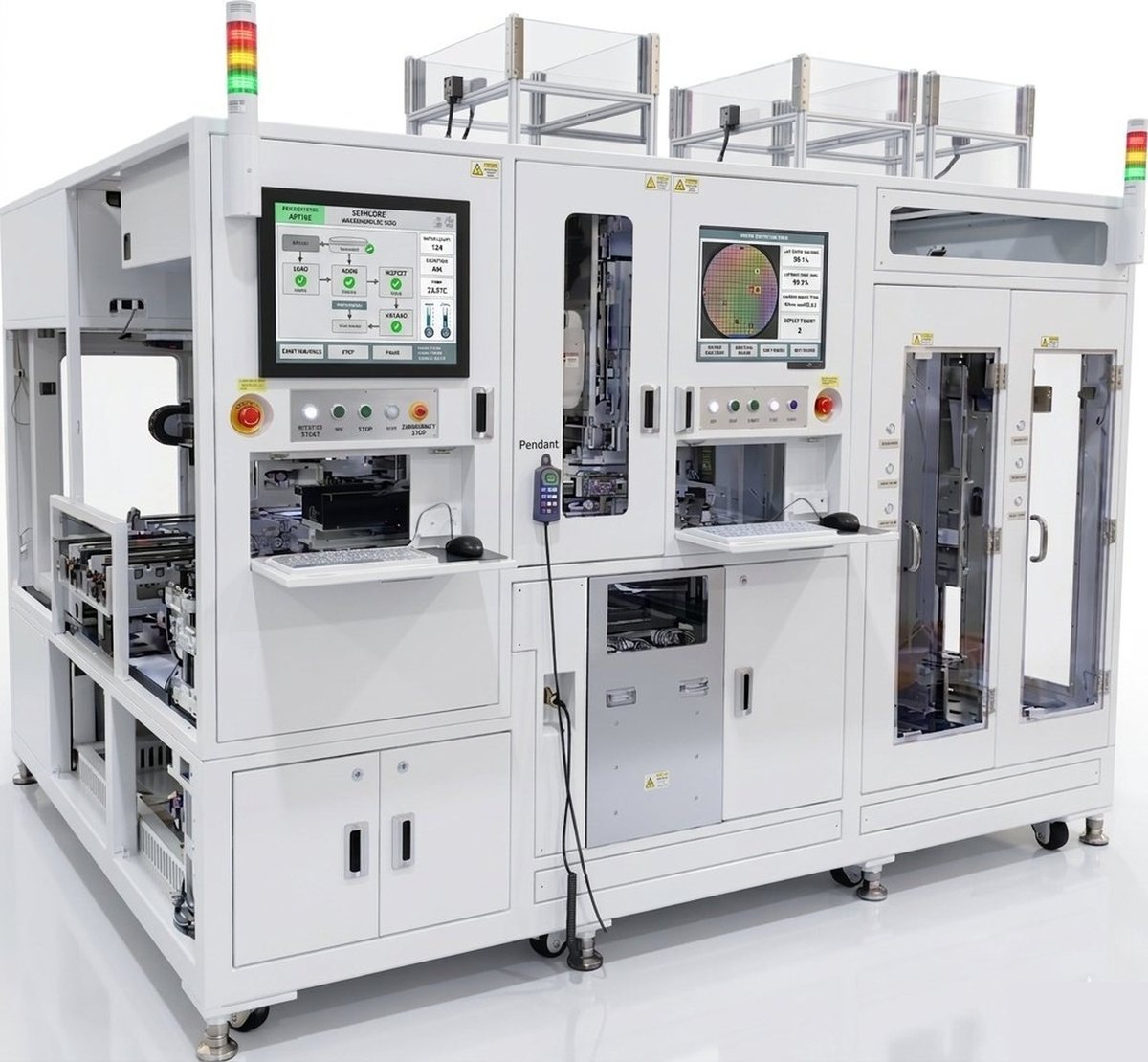

FCBGA Precision Auto Unloading System

At Flip Chip Bonding Process, System that unload Substrate or Separated Bottom JIG / Substrate / Top JIG with inspection by QC Vision after Bonder & Reflow process

Key Features

Applicable to 74, 95mm Substrate by auto conversion & conversion kit
Customized by Single or Dual Lane
Substrate Quality Check by QC Vision with Automatic Map Function
Applicable to OHT for Material Handling System

System Configuration: Buffer Rail, Transfer/Working Rail, PnP, Top JIG Bundle, QC Vision, Substrate Rail, Substrate Magazine Loader/Unloader, JIG Magazine Loader/Unloader

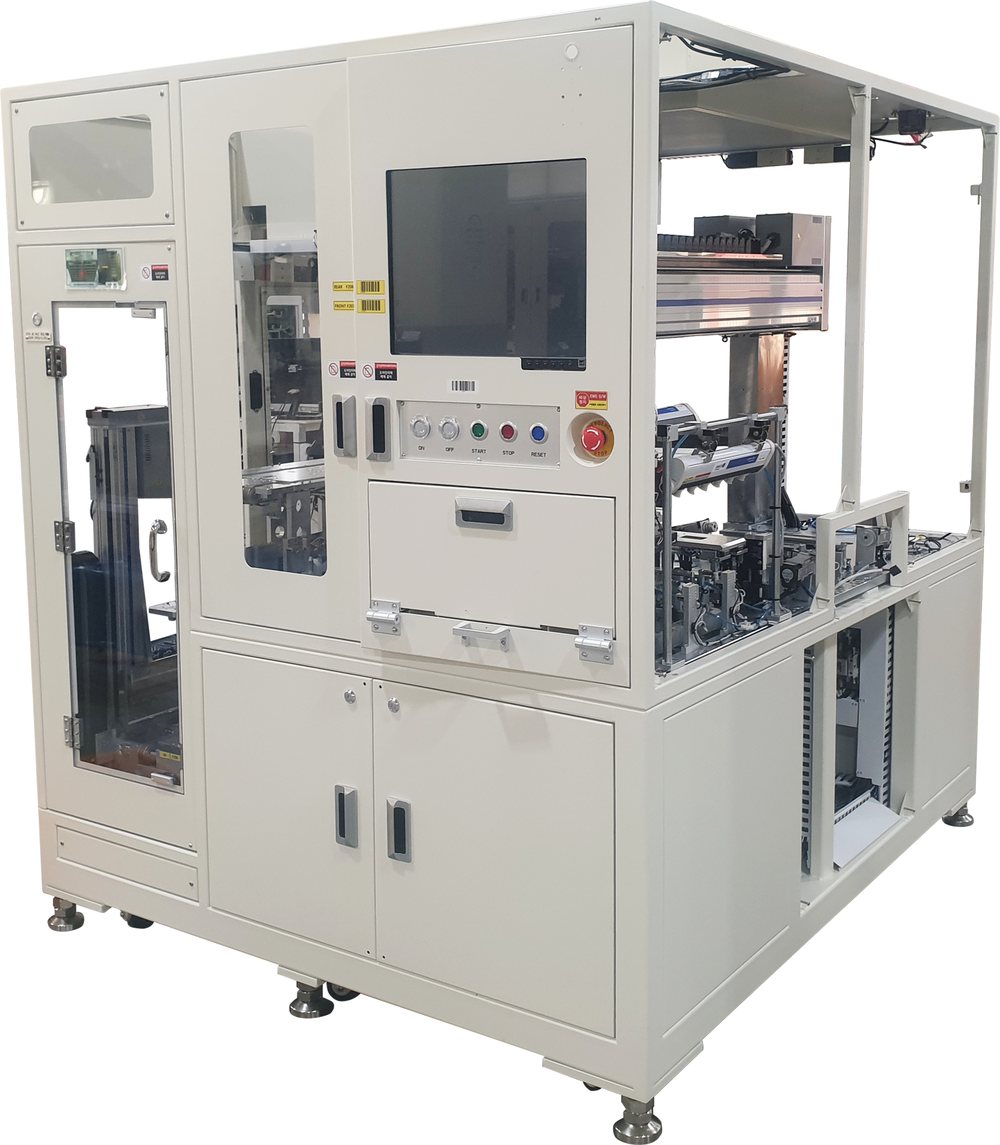

SMT Precision Auto Loading System

At SMT Process, System that load Substrate or Assembled Bottom JIG / Substrate / Top JIG

Key Features

Applicable to 74, 95mm Substrate by auto conversion & conversion kit
Customized by Single or Dual Lane
Substrate Quality Check by QC Vision with Automatic Map Function

System Configuration: Buffer Rail, Transfer/Working Rail, PnP, Top JIG Bundle, QC Vision, Substrate Rail, Substrate Magazine Loader/Unloader, JIG Magazine Loader/Unloader

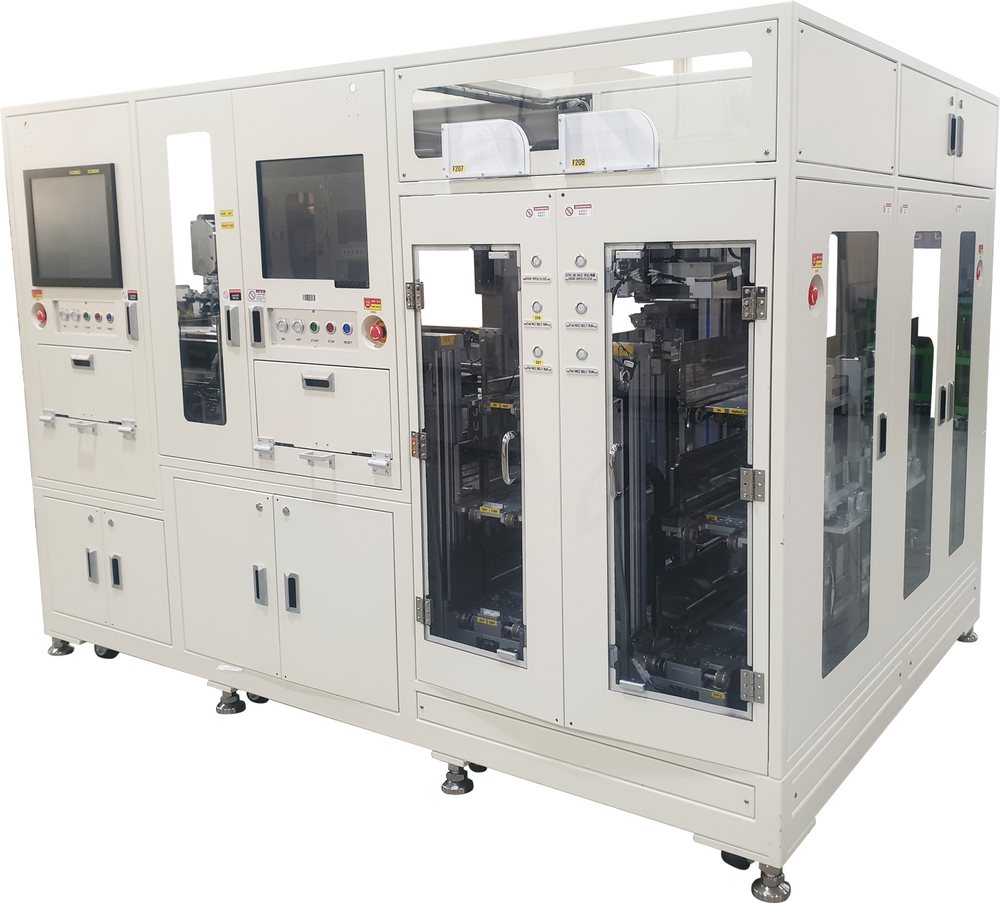

SMT Precision Auto Unloading System

At SMT Process, System that unload Substrate or separated Bottom JIG / Substrate / Top JIG with inspection by QC Vision after Mounter & Reflow process

Key Features

Applicable to 74, 95mm Substrate by auto conversion & conversion kit
Customized by Single or Dual Lane
Substrate Quality Check by QC Vision with Automatic Map Function

System Configuration: Buffer Rail, Transfer/Working Rail, PnP, Top JIG Bundle, QC Vision, Substrate Rail, Substrate Magazine Loader/Unloader, JIG Magazine Loader/Unloader
